Technical Specifications

LED Type SMD5050 RGB

Input Voltage DC12V/24V

Power Consumption 12W/m

IP Rating IP65

Operating Temperature -20°C to +60°C

Warranty 5 Years

Product Details

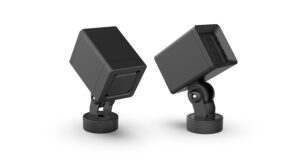

OD Series LED Floodlight

High-Power Architectural LED Floodlights for Facade & Outdoor Lighting Projects

Power Range: 9W–150W
Control: Single Color / RGBW / DMX512
Application: Building Facades, Bridges, Landscape, Commercial Architecture

OLpixel’s OD Series LED Floodlight is engineered for professional architectural and facade lighting projects that demand high output, precise optics, long lifespan, and clean industrial aesthetics. Featuring an industry-leading ducted heat dissipation system, the OD Series delivers small body size with big power, ensuring stable performance even in long-term outdoor operation.

Why Choose OD Series LED Floodlights

1. Revolutionary Ducted Heat Dissipation

Inspired by aircraft engine duct design, the OD Series uses a three-layer ducted cooling structure:

Heat Radiation Layer
Internal Air-Flow Channel
Full Structural Waterproof Layer

This system increases heat dissipation efficiency by up to 40%, allowing the luminaire to reach a stable operating temperature after extended operation and significantly extending LED lifespan.

2. Small Body, Big Power Output

Thanks to high-efficiency cooling and high-power LED sources, the OD Series achieves:

Higher wattage in a smaller housing
Stronger central light wall
Better vertical facade illumination

Compared to traditional floodlights, OD fixtures deliver the same or higher output with a much smaller diameter, improving visual integration into architectural designs.

3. Full Power Range Coverage (9W–150W)

Size Series	Power Options
OD-65	9W / 15W
OD-80	18W / 24W
OD-110	30W / 36W
OD-120	45W / 60W
OD-140	70W / 80W
OD-160	90W / 100W
OD-190	120W / 150W

≤30W: 24V DC
≥30W: 220–240V AC
RGBW & DMX available across the range

4. High-Power LED Sources as Standard

The OD Series uses high-power LEDs only, eliminating low-efficiency small chips:

CREE XPL / XML (Single Color)
CREE RGBW (10W / 20W per LED)

Optical configuration:

≥10° beam: 23mm lens + 10W LED
≤10° beam: 37mm lens + 20W LED

This design creates a larger and brighter central beam, enabling higher facade washing heights at the same lumen level.

5. Full Beam Angle Range (3.3°–60°)

Precision optical systems provide:

Ultra-narrow beams for long-throw facade accents
Medium beams for wall grazing
Wide beams for flood illumination

Each beam angle is engineered for real architectural lighting needs, avoiding inefficient stage-style zoom optics.

6. Full Structural Waterproof Design

Screw-fixed structure with silicone gaskets
No glue sealing required
Waterproof lifespan: 10+ years
Fully disassemblable for driver replacement and maintenance

This structure ensures long-term outdoor reliability, easier servicing, and improved recyclability—especially valued in European and North American markets.

7. Advanced Anti-Glare Solutions

Standard recessed light source design is combined with optional accessories:

Anti-glare ring
Cross grille (≤10% light loss)
Double-ring cross grille for narrow beams

These options reduce glare while maintaining high luminous efficiency and clean appearance.

8. Dual-Rotation Precision Mounting Bracket

100° vertical rotation
360° horizontal rotation
Hidden screws for a clean finish
Easy installation: fix base first, then attach luminaire

The bracket enables precise aiming and faster on-site installation, saving labor time during project execution.

Typical Applications

Architectural facade lighting
Commercial building exteriors
Bridges and infrastructure lighting
Landscape and public space lighting
Hotels, shopping centers, landmarks

Who Is This Product For?

Facade lighting designers
Lighting engineers & consultants
System integrators
Project contractors
Architectural lighting wholesalers

Why Work with OLpixel

China-based professional LED lighting manufacturer
Project-based quotations & customization
Optical selection & wiring diagrams
Technical support & project protection
Stable export experience for global markets

Call-to-Action: Choose the Right Solution for Your Role

For Facade Lighting Designers

Design with confidence using precise optics and real engineering data.
Get beam angle recommendations, photometric support, and product selection guidance tailored to your facade concept.

👉 Request lighting design support & IES files

Beam angle & power selection advice
Optical comparison for facade heights
RGBW & DMX control strategy

For System Integrators & DMX Control Companies

Ensure seamless control, wiring clarity, and stable performance.
We support system integration from single fixtures to large-scale DMX-controlled facade projects.

👉 Get DMX wiring diagrams & control solutions

DMX addressing & topology support
RGBW control configuration
Power & signal layout drawings

For Project Contractors & Engineering Companies

Reduce installation time and project risk.
Our OD Series is designed for easy mounting, long outdoor lifespan, and reliable after-sales support.

👉 Request project-based quotation & lead time

BOQ-based pricing
Installation-friendly bracket system
Stable delivery for project schedules

For Lighting Distributors & Wholesalers

Expand your architectural lighting portfolio with a high-value floodlight series.
Ideal for customers demanding compact size, high power, and professional-grade performance.

👉 Apply for distributor pricing & samples

OEM / ODM support
Sample testing availability
Long-term supply stability

For Architects & Property Developers

Enhance building value with durable, high-quality exterior lighting.
We help you select lighting solutions that balance aesthetics, performance, and long-term maintenance.

👉 Consult on facade lighting solutions
