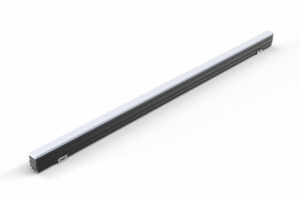

Linear Bar is designed for professional outdoor architectural lighting projects requiring compact structure, strong durability and beautiful uniform lighting. With IP66 full-structure waterproofing, solid PMMA optical cover and automotive-grade piston waterproof connectors, it delivers long-term reliability in harsh outdoor environments.
🔹 Key Features
-
Full structure IP66 waterproof (no silicone glue)
-
Minimalist modern industrial design
-
Frameless luminous surface – uniform lighting without dark edges
-
Square piston-type waterproof connector + nano breathing valve
-
Solid 12 mm PMMA cover – UV & corrosion resistant
-
Supports single color / tunable white / RGBW
-
Up to 16 pixel segments
-
50,000 hrs lifetime
🔹 Specifications
| Parameter | Details |
|---|---|
| Model | TF-25-02 LED Linear Bar |
| Voltage | DC24V |
| Power | 12–18W |
| LED | Lumileds / OSRAM |
| CCT / Colors | Single / Dual White / RGBW |
| Beam Angle | 120° |
| Pixel Segments | Max 16 |
| Efficiency | 50 lm/W (white) |
| Control | ON-OFF / DMX512 |
| IP Rating | IP66 |
| Working Temp | −30 °C to +35 °C |
| Housing | Aluminum Alloy |
| Cover | Solid PMMA |
| Lifetime | 50,000 hrs |
🔹 Applications
-
Building facade lighting
-
Bridges & infrastructure
-
Hotels & commercial buildings
-
Media facade effects
-
Landscape & city lighting
